Wholesale AST51812 Supplier, Factories

Product Description

Technical Specifications
SERIES AST51811~2
MATERIAL Aluminium body + PC
INPUT VOLTAGE 120-277Vac
WORKING CURRENT 700mA
POWER FACTOR 0.96
LED Q'TY 16-32pcs
TOTAL CONSUMPTION 35w-70w
EFFICACY >97 lm/w
LED CHIPS Cree XPG2
BEAM PATTERN A01, A02, A03
COLOR RENDERING INDEX More than 75
PIPE MOUNTING DIA 60mm
IP RATING IP65
WORKING CONDITION Temp: -40℃-55℃ / Humity: 10%-95%
LIFETIME More than 50,000 hrs.
Product Features
WARRANTY
5 Years reliability assurance.
POWER SAVING
At least 60% energy saving compared to standard lights.
LONG LIFE
LEDs are engineered to last for more than 50,000 hours.
HEAT DISSIPATION
Patented heat dissipation design to achieve optimum efficiency.
MODULAR DESIGN
Easily replace modules directly to support different applications.
LAB TESTED
Tested by a national listing laboratory in accordance with IES standards.
SOLID-STATE
Highly resistant to physical shocks and vibrations.
INSTANT-ON
Turns on instantly without any delay or re-strike delay.
HIGH CRI
A CRI rating of 75+ helps enhance and true up all original colors.
APPLICATION
Perfectly suited for rural roads, commercial squares, gardens, and villas.

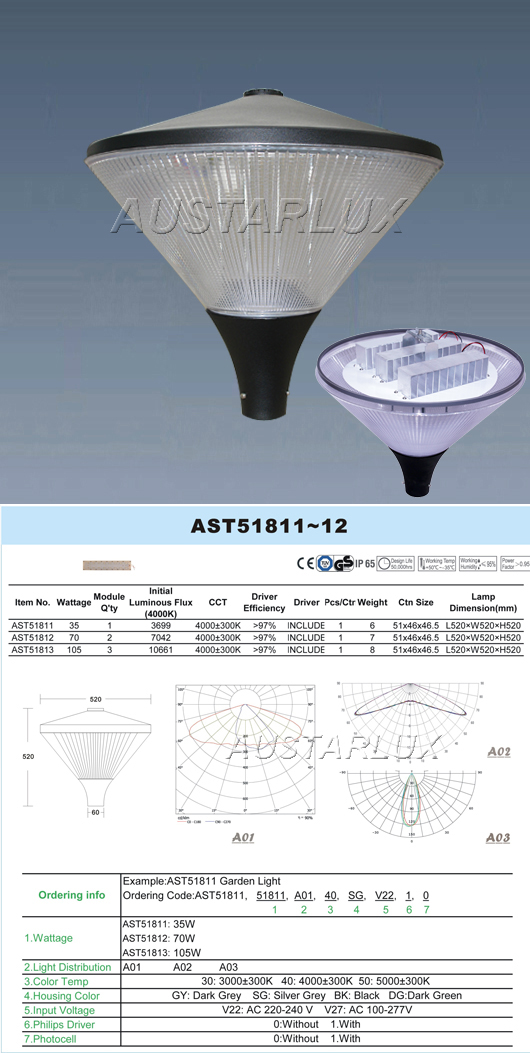

AST51811-2 Series Aluminium Body LED Street Light
Frequently Asked Questions
What is the expected lifetime of the AST51811~2 light series?
The AST51811~2 series features high-quality LEDs that last for more than 50,000 hours of operation, supported by a 5-year warranty.
What materials are used in the construction of this light?
The body is manufactured from durable Aluminium combined with PC (Polycarbonate) to ensure robust structure and longevity.
How energy efficient is the AST51811~2 series?
It achieves at least 60% energy savings compared to standard lights. It operates with a high power factor of 0.96 and has an efficacy exceeding 97 lm/w.
What is the IP rating and working condition limits?
The series has an IP65 rating, making it highly dust and water-resistant. It functions reliably in temperatures ranging from -40℃ to 55℃ and humidity levels between 10% and 95%.
Where can this lighting fixture be applied?
It is ideal for multiple outdoor and public applications, including rural roads, commercial squares, gardens, and villas.
Does the design support easy module replacement?
Yes, it features a modular design that allows users to replace the module directly to suit different application requirements.
