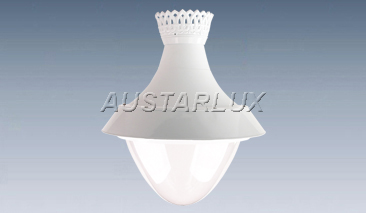

Wholesale AST115F1 Factory, Factories

Product Description

Technical Specifications

Series AST115F1 ~ 3
Material Aluminium body + PC
Input Voltage 120-277Vac
Working Current 700mA
Power Factor 0.96
LED Q'ty 16-48pcs
Total Consumption 35w-105w
Efficacy >97 lm/w
LED Chips Cree XPG2
Beam Pattern A01, A02, A03
Color Rendering Index More than 75
Pipe Mounting Dia 1 in. (26mm)
IP Rating IP65
Working Condition Temp: -40℃-55℃ / Hum: 10%-95%
Lifetime More than 50,000 hrs.

Features

Warranty
5 Years
Power Saving
At least 60% energy saving
Long Life
LEDs last for more than 50,000hrs
Heat Dissipation
Patented heat dissipation design, achieve optimum efficiency
Modular Design
Can replace the module directly, if you want another kind of application.
Lab Tested
National listing lab test in accordance with IES standards.
Solid-State
High-shock and High vibration resistant
Instant-On
Light turn on right away, without delay in re-strike
High CRI
75 CRI enhances all original colors
Application
Rural road, commercial square, garden, villa.

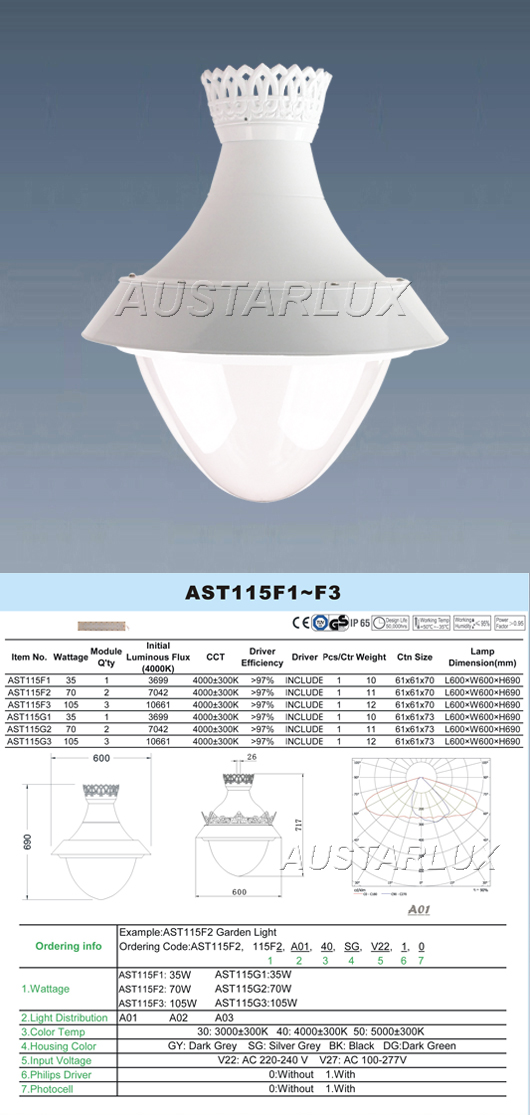

AST115F1 Series Product Image

Frequently Asked Questions

Q1: What is the expected lifespan of the AST115F1 ~ 3 series LED lights?
A: The LED light chips are engineered for long-term durability, providing an operational lifetime of more than 50,000 hours.
Q2: What materials are used in the construction of this light fixture?
A: This series features a high-grade Aluminium body combined with a durable PC (Polycarbonate) cover for optimal structure and light distribution.
Q3: How much energy can be saved with these LED fixtures?
A: Switching to the AST115F1 ~ 3 series offers at least 60% energy saving compared to conventional lighting options.
Q4: Are these lighting systems suitable for harsh weather conditions?
A: Yes, with an IP65 ingress protection rating, the fixtures are designed to operate efficiently in temperatures ranging from -40℃ to 55℃ and humidity conditions from 10% to 95%.
Q5: Can the light modules be easily replaced or customized?
A: Yes, the product features a modular design that allows you to directly replace the module depending on your specific application requirements.
Q6: What applications is this series recommended for?
A: It is ideal for installations in rural roads, commercial squares, gardens, and villas.
