Product Description

Technical Specifications

SERIES

AST115B1, AST115B2, AST115B3, AST115B4

MATERIAL

Aluminium body + PC

INPUT VOLTAGE

120-277Vac

WORKING CURRENT

700mA

POWER FACTOR

0.96

LED Q'TY

16-64pcs

TOTAL CONSUMPTION

35w-140w

EFFICACY

>97 lm/w

LED CHIPS

Cree XPG2

BEAM PATTERN

A01, A02, A03

COLOR RENDERING INDEX

More than 75

PIPE MOUNTING DIA

48~60mm

IP RATING

IP65

WORKING CONDITION

Temp: -40℃-55℃, Humidity: 10％-95％

LIFETIME

More than 50,000 hrs

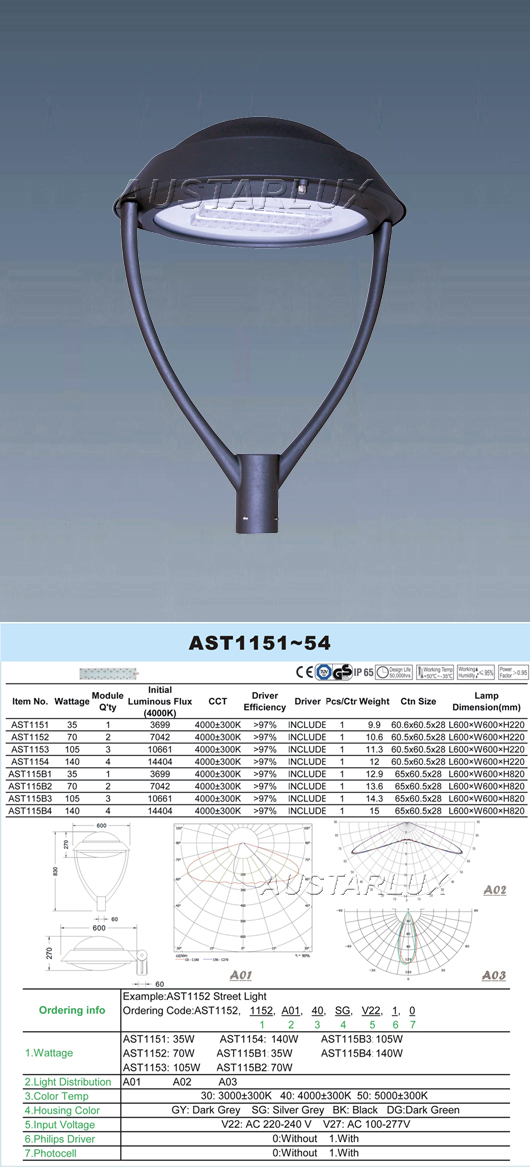

AST115B Series LED Street Light Specifications and Features

Key Features

WARRANTY

Enjoy long-term reliability with an inclusive 5-year warranty.

POWER SAVING

Achieve at least 60% energy saving compared to conventional lighting.

LONG LIFE

Engineered with high-quality LEDs that last for more than 50,000 hours.

HEAT DISSIPATION

Patented heat dissipation design guarantees optimal working efficiency.

MODULAR DESIGN

Enables direct module replacement to accommodate different application requirements.

LAB TESTED & SOLID-STATE

Tested in accordance with IES standards. High-shock and high-vibration resistant.

INSTANT-ON & HIGH CRI

Lights turn on instantly without delay. 75 CRI output enhances original colors.

APPLICATION

Perfect for installation in rural roads, commercial squares, gardens, and villas.

Frequently Asked Questions

What models are included in the AST115B series? +

The series includes AST115B1, AST115B2, AST115B3, and AST115B4 models.

What are the power options and efficacy of this series? +

The total consumption ranges from 35W to 140W depending on the specific model, delivering an efficacy of more than 97 lm/w.

How energy efficient is this lighting fixture? +

This series delivers at least 60% energy saving compared to traditional lighting systems.

Can the lighting modules be replaced individually? +

Yes, it features a modular design that allows you to replace the module directly to adapt to different application demands.

What are the recommended applications for these lights? +

They are ideal for lighting systems in rural roads, commercial squares, gardens, and private villas.

What is the environmental working condition and durability? +

With an IP65 protection rating, it works reliably in temperatures ranging from -40℃ to 55℃ and humidity levels between 10% and 95%.
