Product Description

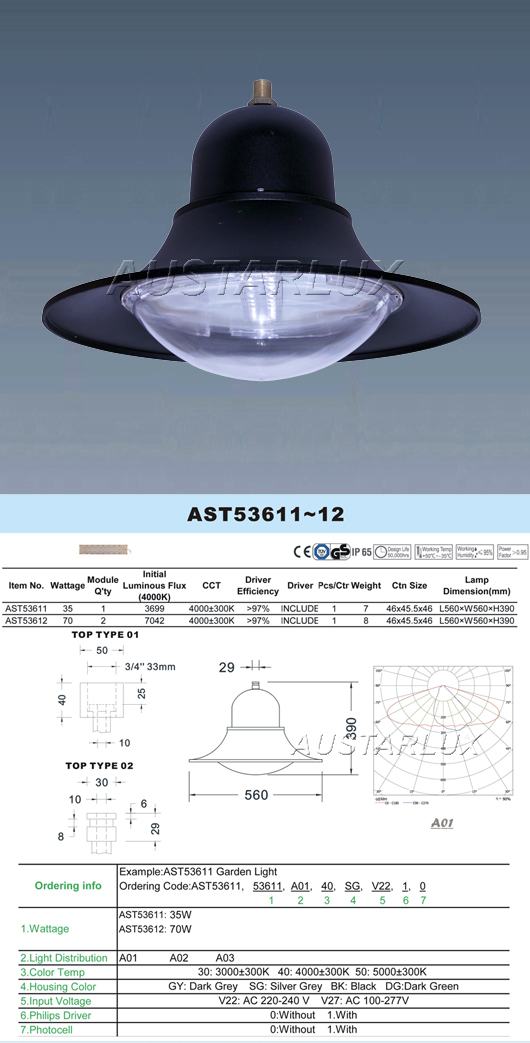

Technical Specifications
Series
AST53611, AST53612
Material
Aluminium body + PC
Input Voltage
120-277Vac
Working Current
700mA
Power Factor
0.96
LED Q'ty
16-32pcs
Total Consumption
35w-70w
Efficacy
>97 lm/w
LED Chips
Cree XPG2
Beam Pattern
A01, A02, A03
Color Rendering Index
More than 75
Pipe Mounting Dia
1 in. (26mm)
IP Rating
IP65
Working Condition
Temp: -40℃-55℃ / Humidity: 10%-95%
Lifetime
More than 50,000 hrs
Product Features
Warranty

5 Years warranty coverage.

Power Saving

At least 60% energy saving performance.

Long Life

High durability LEDs last for more than 50,000hrs.

Heat Dissipation

Patented heat dissipation design to achieve optimum efficiency.

Modular Design

Can replace the module directly, if you want another kind of application.

Lab Tested

National listing lab test in accordance with IES standards.

Solid-State

High-shock and High vibration resistant construction.

Instant-On

Light turns on right away, without delay in re-strike.

High CRI

75 CRI enhances all original colors effectively.

Application

Perfect for rural roads, commercial squares, gardens, and villas.

Frequently Asked Questions
What materials are used in the construction of the AST53611 and AST53612 series?

These series are constructed using a high-quality aluminium body paired with PC material, offering durability and high structural integrity.

What is the estimated lifetime and warranty of this lighting series?

The LEDs have an operational lifetime of more than 50,000 hours, and the entire product is backed by a 5-year warranty.

How energy efficient are these lights compared to traditional options?

They offer at least a 60% energy saving with a high power factor of 0.96 and a luminous efficacy of more than 97 lm/w.

Can these lights operate under extreme environmental conditions?

Yes, they are designed to perform reliably in temperatures ranging from -40℃ to 55℃ and relative humidity levels between 10% and 95%, supported by an IP65 rating.

Is the modular design easy to maintain?

Yes, the modular design allows you to directly replace the modules if you wish to adjust the light for another application.

Where are these lights typically installed?

These lights are ideally suited for rural roads, commercial squares, gardens, and villas.
