Technical Specifications

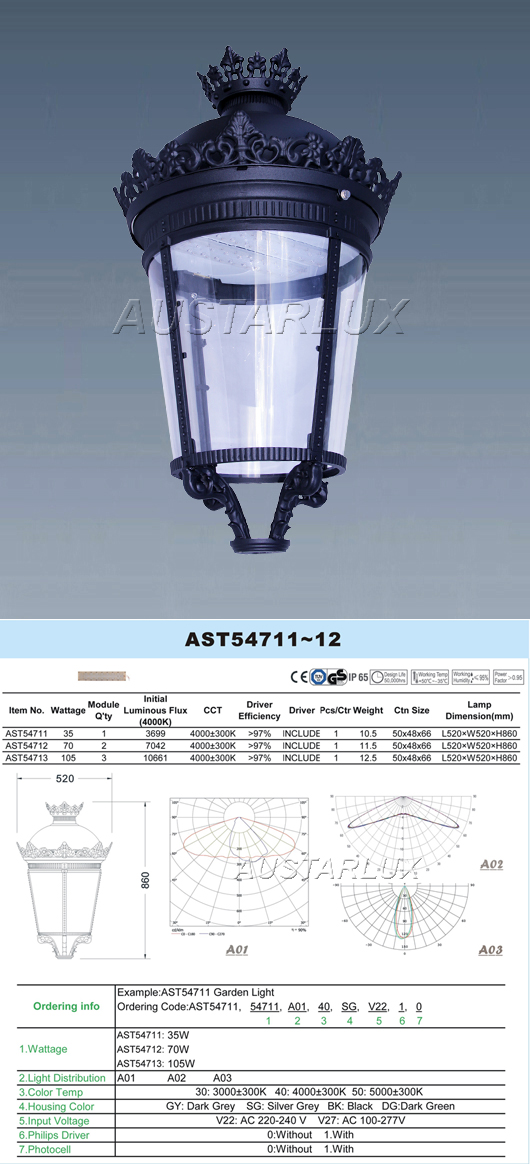

Series
AST54712, AST54711, AST54713
Material
Aluminium body + PC
Input Voltage
120-277Vac
Working Current
700mA
Power Factor
0.96
LED Q'ty
16~48pcs
Total Consumption
35W~105W
Efficacy
>97 lm/w
LED Chips
Cree XPG2
Beam Pattern
A01, A02, A03
Color Rendering Index
More than 75
Pipe Mounting Dia
1 in. (26mm)
IP Rating
IP65
Working Condition
Temp: -40℃-55℃ / Humity: 10％-95％
Lifetime
More than 50,000 hrs
Key Features & Benefits
Standard 5-year assurance ensures high quality, robust operation and customer peace of mind.
Delivers at least 60% energy saving compared to traditional HID lighting fixtures.
Equipped with Cree XPG2 LEDs designed to perform reliably for more than 50,000 hours.
Patented heat dissipation design specifically engineered to achieve optimum thermal efficiency.
Highly modular system allowing direct module replacement for varying lighting applications.
Extensively tested by national listing laboratories in strict accordance with IES standards.
Constructed without moving parts, making it high-shock and high-vibration resistant.
Lights turn on immediately without delay, eliminating re-strike warm-up times.
Featuring more than 75 CRI which effectively enhances and renders all original colors.
Applications
Ideal for rural roads, commercial squares, gardens, and villas.
Frequently Asked Questions
What models are included in this LED light series?
This outdoor lighting series includes the AST54712, AST54711, and AST54713 models, built with a heavy-duty Aluminium body and PC cover.
What is the lifespan and warranty of these outdoor lights?
The LEDs last for more than 50,000 hours, and the entire lighting system comes backed by a 5-year comprehensive warranty.
How much energy can be saved by switching to these LEDs?
The system provides at least 60% energy saving when replacing conventional outdoor lighting fixtures.
Can these fixtures withstand extreme weather environments?
Yes. With an IP65 ingress protection rating, they function optimally under working temperatures of -40℃ to 55℃ and humidity ranges from 10％ to 95％.
What is the light performance profile of this series?
It uses high-efficiency Cree XPG2 LED chips, delivers an efficacy of over 97 lm/w, features a color rendering index (CRI) of more than 75, and offers A01, A02, and A03 beam patterns.
Is the module replaceable if standard requirements change?
Yes. Thanks to its modular design, the module can be replaced directly depending on the needs of your specific application.
