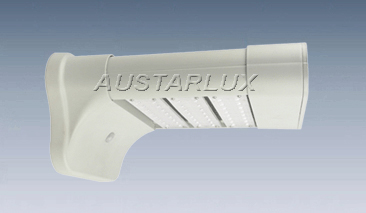

High-Quality AST1803 Manufacturers, Suppliers

Send Inquiry

Product Description

Technical Specifications

Series AST1801, AST1802, AST1803, AST1804

Material Aluminium body + PC

Input Voltage 120-277Vac

Working Current 700mA

Power Factor 0.96

LED Quantity 16-64pcs

Total Consumption 35W-140W

Efficacy >97 lm/w

LED Chips Cree XPG2

Beam Pattern A01, A02, A03

Color Rendering Index More than 75

IP Rating IP65

Working Temperature -40℃ - 55℃

Working Humidity 10％ - 95％

Lifetime More than 50,000 hrs

Product Features

Warranty

5 Years comprehensive warranty coverage.

Power Saving

Achieve at least 60% energy saving compared to standard fixtures.

Long Life

High performance LEDs last for more than 50,000 hours.

Heat Dissipation

Patented heat dissipation design to achieve optimum lighting efficiency.

Modular Design

Modules can be replaced directly to fit different applications.

Lab Tested

Nation listing lab tested in strict accordance with IES standards.

Solid-State

High-shock and high-vibration resistant construction.

Instant-On

Light turns on immediately without delay in re-strike.

High CRI

More than 75 CRI enhances and restores original colors.

Application

Perfect for rural roads, commercial squares, gardens, and villas.

Frequently Asked Questions

What LED chips are used in the AST1801-AST1804 series?

This series uses high-quality Cree XPG2 LED chips, which deliver outstanding efficacy of over 97 lm/w and a color rendering index (CRI) of more than 75.

How much energy can I save with these light fixtures?

These fixtures offer advanced power-saving capabilities, reducing energy consumption by at least 60% compared to traditional light sources.

What are the environmental limits for these lights?

With an IP65 rating, these lights are dust-tight and water-resistant. They are designed to operate safely in temperatures from -40℃ to 55℃ and humidity levels of 10% to 95%.

What is the advantage of the modular design?

The modular design allows you to replace or upgrade modules directly without replacing the entire fixture, making it highly versatile and easy to maintain.

Does the light have a delay when turned on?

No, these lights feature an instant-on design. They illuminate immediately at full brightness without any delay or re-strike lag.

What kind of warranty is provided with these lights?

We provide a 5-year warranty on the AST1801, AST1802, AST1803, and AST1804 series, guaranteeing long-lasting quality and operation.
