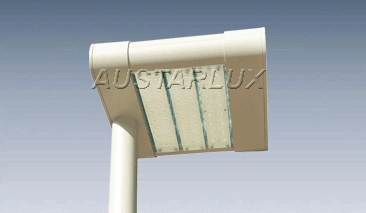

High-Quality AST1503 Manufacturers, Factory

Product Description

Technical Specifications
Series
AST1501, AST1402, AST1503, AST1504
Material
Aluminium body + PC
Input Voltage
120-277Vac
Working Current
700mA
Power Factor
0.96
LED Q'ty
16~64pcs
Total Consumption
35W~140W
Efficacy
>97 lm/w
LED Chips
Cree XPG2
Beam Pattern
A01, A02, A03
Color Rendering Index
More than 75
Pipe Mounting Dia
48~60mm
IP Rating
IP65
Working Condition
Temperature: -40℃ to 55℃ | Humidity: 10% to 95%
Lifetime
More than 50,000 hrs
Features & Advantages
Warranty

Offers a comprehensive 5-year warranty for assured long-term reliability.

Power Saving

Provides at least 60% energy saving compared to traditional lighting systems.

Long Life

High-quality LEDs are engineered to last for more than 50,000 hours.

Heat Dissipation

Patented heat dissipation design helps achieve optimum operating efficiency.

Modular Design

Allows you to replace the module directly to suit different application requirements.

Lab Tested

Nation listing lab tested in strict accordance with standard IES methods.

Solid-State

Highly shock-resistant and vibration-resistant construction ensures durability.

Instant-On

Light turns on immediately, without any delay in re-striking.

High CRI

CRI of more than 75 enhances and reveals true, original colors.

Application

Perfectly designed for rural roads, commercial squares, gardens, and villas.

Frequently Asked Questions
What is the lifespan and warranty of the AST series?

The AST series LED lights have an operational lifetime of more than 50,000 hours and are backed by a 5-year warranty.

What materials are used to construct these LED lights?

They are constructed with a durable aluminum body and PC material, offering solid-state design that is highly resistant to shock and vibration.

How energy-efficient is the AST series?

These units offer at least a 60% energy saving, achieving a high efficacy of over 97 lm/w and a power factor of 0.96.

Can the light modules be easily replaced or modified?

Yes. The products feature a modular design, enabling you to replace the light module directly if you require a different type of application.

What are the recommended operating environment and installation details?

They feature an IP65 waterproof rating and operate efficiently in temperatures ranging from -40℃ to 55℃, with humidity levels from 10% to 95%. They fit mounting pipe diameters between 48mm and 60mm.

Do these lights support instant-on without delays?

Yes, the LED chips (Cree XPG2) support instant-on performance, meaning the lights turn on immediately without any delay during re-strike.
