Product Description

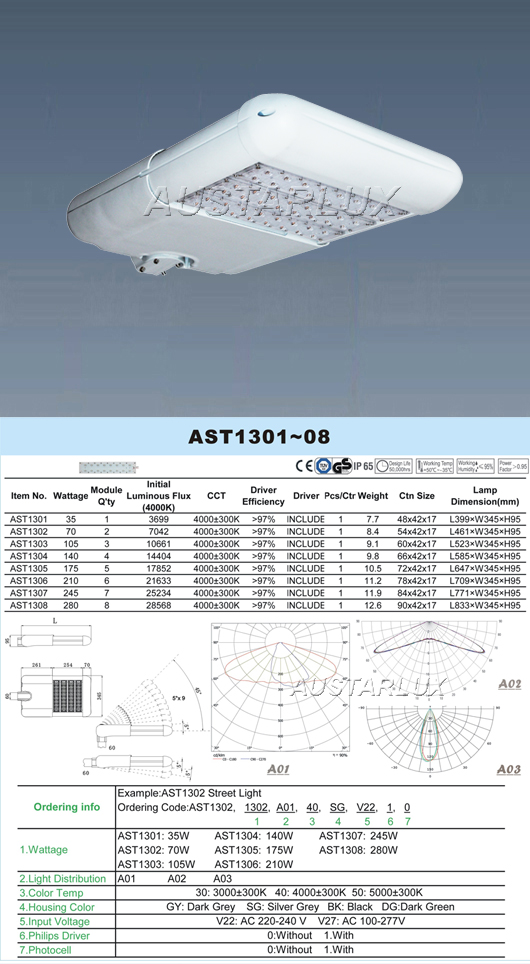

Technical Specifications

Series

AST1301, AST1302, AST1303, AST1304, AST1305, AST1306, AST1307, AST1308

Material

Aluminium body + PC

Input Voltage

120-277Vac

Working Current

700mA

Power Factor

0.96

LED Q'ty

16~128pcs

Total Consumption

35W~280W

Efficacy

>97 lm/w

LED Chips

Cree XPG2

Beam Pattern

A01, A02, A03

Color Rendering Index

More than 75

Pipe Mounting Dia

60mm

IP Rating

IP65

Working Condition

Temperature: -40℃-55℃ | Humidity: 10％-95％

Lifetime

More than 50,000 hrs

Key Features

Warranty

5 Years long term warranty support.

Power Saving

At least 60％ energy saving compared to conventional lighting.

Long Life

LEDs last for more than 50,000 hours.

Heat Dissipation

Patented heat dissipation design, achieving optimum efficiency.

Modular Design

Allows for direct module replacement to accommodate other applications.

Lab Tested

Tested in accordance with IES standards at national listing labs.

Solid-State

High shock-resistant and high vibration-resistant configuration.

Instant-On

Light turns on immediately, without delay in restrike.

High CRI

More than 75 CRI enhances all original ambient colors.

Application

Ideal for rural roads, commercial squares, gardens, and villas.

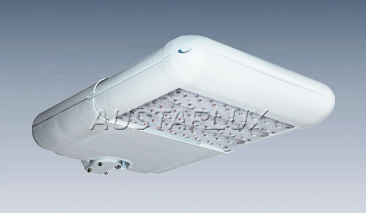

Product Gallery

Frequently Asked Questions

Q What is the energy saving potential of these LED lights?

These LED lights offer at least 60% energy saving compared to traditional lighting systems, significantly reducing operational power costs.

Q Can I replace the modules individually?

Yes, this series features a convenient modular design that allows you to directly replace the modules, making it easier to transition between different applications.

Q What is the lifetime and warranty of this product?

The series provides a robust operational lifetime of more than 50,000 hours and comes with a 5-year comprehensive manufacturer warranty.

Q What environment conditions are suitable for these fixtures?

The lights are built with IP65 ingress protection and are rated to operate reliably within temperatures ranging from -40℃ to 55℃ and relative humidity levels of 10% to 95%.

Q What are the core applications for this series?

Due to its durable construction and customizable beam patterns, this lighting series is suitable for rural roads, commercial squares, public gardens, and villas.
