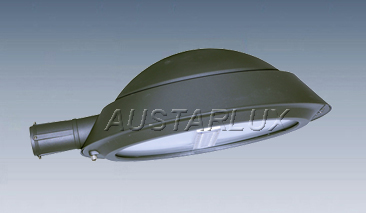

High-Quality AST1151 Manufacturer, Manufacturers

Product Description

Technical Specifications
Series AST1151, AST1152, AST1153
Material Aluminium body + PC
Input Voltage 120-277Vac
Working Current 700mA
Power Factor 0.96
LED Q'ty 16~48pcs
Total Consumption 35W~105W
Efficacy >97 lm/w
LED Chips Cree XPG2
Beam Pattern A01, A02, A03
Color Rendering Index More than 75
Pipe Mounting Dia 60mm
IP Rating IP65
Working Condition Temp: -40℃-55℃ / Humity: 10%-95%
Lifetime More than 50,000 hrs
Product Features
✔
Warranty

5 Years standard warranty.

✔
Power Saving

At least 60% energy saving compared to traditional lighting.

✔
Long Life

LEDs last for more than 50,000 hours of continuous operation.

✔
Heat Dissipation

Patented heat dissipation design to achieve optimum efficiency.

✔
Modular Design

Easy to replace the module directly for different applications.

✔
Lab Tested

Tested by national listing laboratories in accordance with IES standards.

✔
Solid-State Design

High-shock and high-vibration resistant construction.

✔
Instant-On

Lights turn on right away, with no delay in re-strike.

✔
High CRI

75 CRI enhances and restores original colors effectively.

✔
Applications

Perfect for rural roads, commercial squares, gardens, and villas.

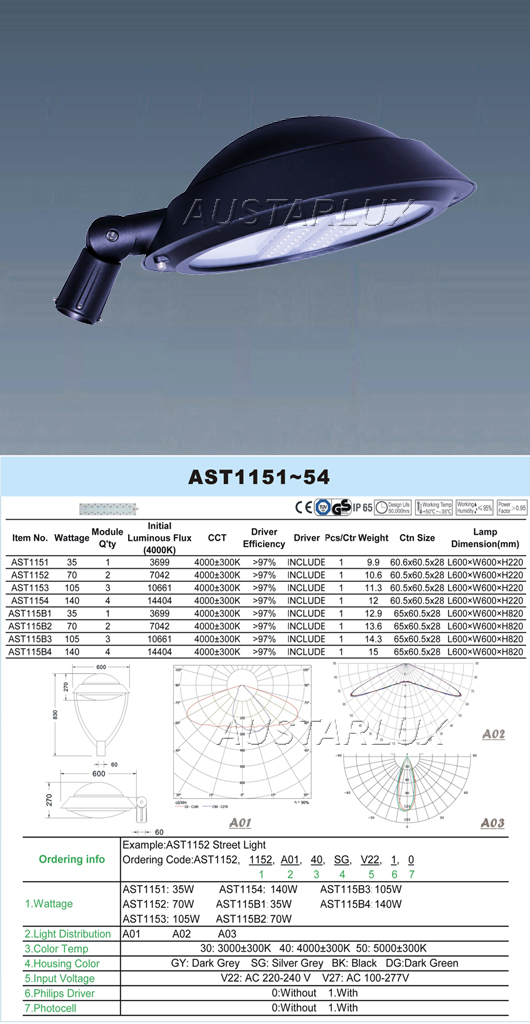

AST Series Lighting Product
Frequently Asked Questions
Q What is the warranty period for the AST series LED lights?

The AST1151, AST1152, and AST1153 series lights come with a 5-year warranty.

Q What materials are used to construct these lights?

They are built using a durable Aluminium body combined with PC material for optimal protection and weight.

Q How energy-efficient are these LED fixtures?

These LED lights offer at least 60% energy saving compared to conventional lighting options, featuring an efficacy of over 97 lm/w.

Q What is the working temperature range and IP rating?

The lights are IP65 rated and can operate reliably in temperatures ranging from -40℃ to 55℃, with humidity levels from 10% to 95%.

Q What LED chips are used and what is their expected lifetime?

The fixtures utilize Cree XPG2 chips, which are rated for an outstanding lifetime of more than 50,000 hours.

Q What are the recommended applications for this series?

They are highly suitable for outdoor lighting installations, including rural roads, commercial squares, gardens, and villas.
